Factory Method

Factory Method#

Intent#

Factory Method is a creational design pattern that provides an interface for creating objects and allows its implementors to alter the type of objects that will be created.

Example - from problem to solution#

The class is strongly coupled to the concrete classes it creates. This makes it hard to change the class’s behavior or replace the concrete classes with other classes.

class MusicApp
{
public:
    //...

    void play(const std::string& track_title)
    {
        // creation of the object
        SpotifyService music_service("spotify_user", "rjdaslf276%2", 45);

        // usage of the object
        std::optional<Track> track = music_service.get_track(track_title);
        if (track.has_value())
        {
            music_service.play(track);
        }
        else
        {
            //... handle error
        }
    }

    //...rest of the class
};

The Factory Method pattern suggests defining an interface for creating objects, but lets subclasses decide which class to instantiate. This way, the class delegates the object creation to its subclasses.

We can start with extracting an interface for the music service:

class MusicService
{
public:
    virtual std::optional<Track> get_track(const std::string& title) = 0;
    virtual void play(Track track) = 0;
    virtual ~MusicService() = default;
};

Any specific music service should implement this interface. For example, the SpotifyService or AppleMusicService.

class SpotifyService : public MusicService
{
public:
    SpotifyService(const std::string& user, const std::string& password, int port);
    std::optional<Track> get_track(const std::string& title) override;
    void play(Track track) override;
};

Then we can abstract the process of creating the music service instance:

class MusicServiceCreator
{
public:
    virtual std::unique_ptr<MusicService> create_music_service() = 0;
    virtual ~MusicServiceCreator() = default;
};

The MusicApp class can now delegate the responsibility of creating the music service to the objects implementing the MusicServiceCreator interface. The creator can be injected as dependency to the MusicApp class.

class MusicApp
{
    std::shared_ptr<MusicServiceCreator> music_service_creator_;
public:
    MusicApp(std::shared_ptr<MusicServiceCreator> music_service_creator) // DI - Dependency Injection
        : music_service_creator_(music_service_creator)
    {
    }

    void play(const std::string& track_title)
    {
        // creation of the object
        std::unique_ptr<MusicService> music_service =
            music_service_creator_->create_music_service();

        // usage of the object
        std::optional<Track> track = music_service->get_track(track_title);

        //...
    }
};

Now the process of creating the music service is encapsulated in the MusicServiceCreator object. The MusicApp class is no longer responsible for creating the music service object. Moreover, the MusicApp class is no longer coupled to the concrete class of the music service. It can work with any class that implements the MusicServiceCreator interface. The process of instantiating the music service is separated from the usage of the music service.

Factory Method - Context#

We want to introduce a new functionality by writing a new class and creating an instance of that class.

Factory Method - Problem#

  • We want to instantiate concrete classes through an abstract interface

  • A given class cannot anticipate the type of object to be created

  • Information about the type of object to be created is available only at runtime

  • Object creation should be separated from the object usage

Factory Method - Structure#

Factory Method - Collaboration#

  • The Creator class object delegates to its derived classes the responsibility of defining the factory method to create an instance of the appropriate ConcreteProduct class (a subclass of the abstract Product class)

Factory Method - Consequences#

  • Eliminates the need to insert specific classes into the application code.

  • Creating objects within a class using a factory method is more flexible than creating them directly.

  • Promotes loose coupling by reducing dependencies to concrete classes specific classes in your code.

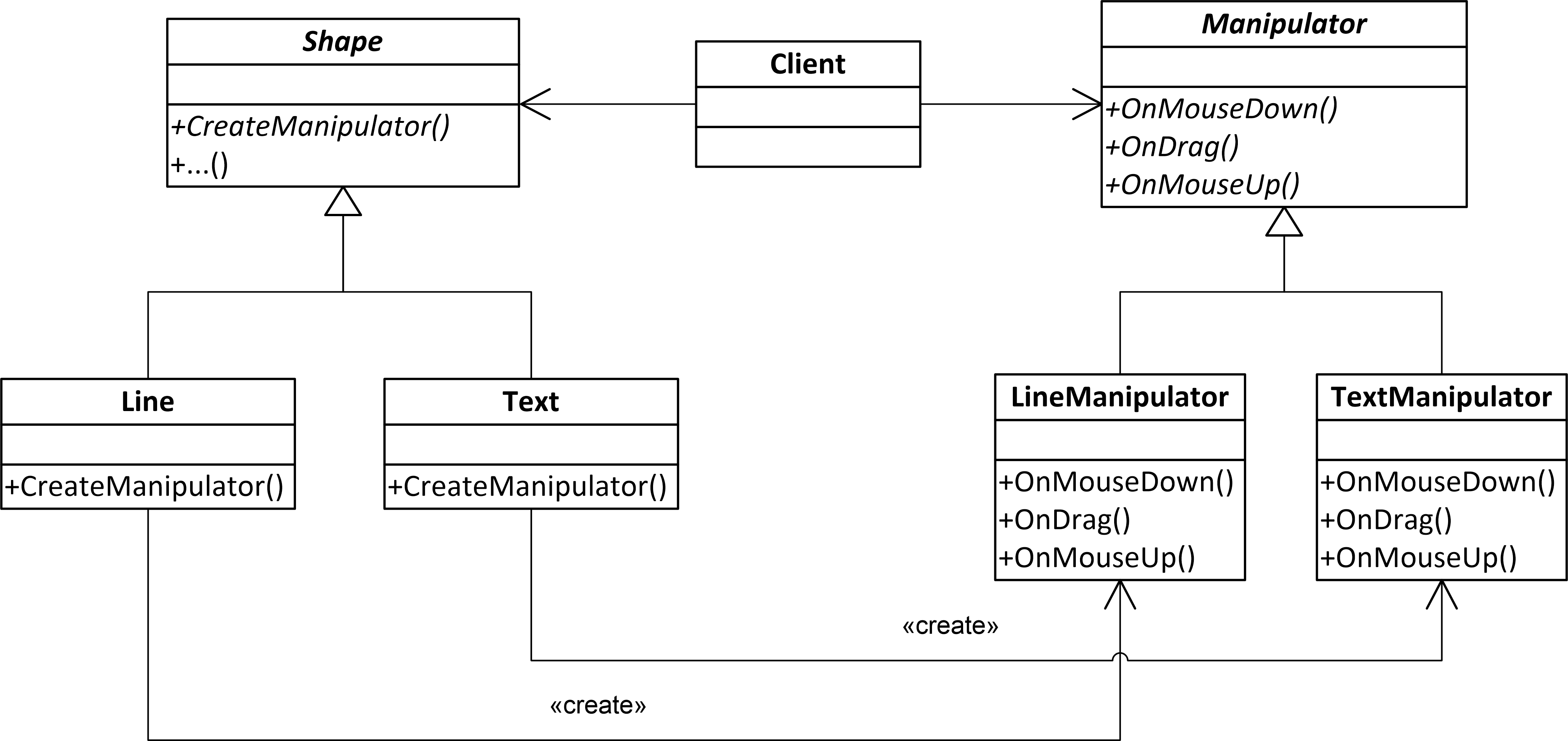

Parallel Class Hierarchies#

  • Parallel class hierarchies arise when a class delegates some of its responsibilities to a separate class

  • The Factory Method pattern allows combining parallel class hierarchies

std::shared_ptr<Shape> selected_shape = get_clicked_shape();

std::shared_ptr<Manipulator> manipulator = selected_shape->create_manipulator();

manipulator->on_drag(100, 200);

Factory Method - Implementation#

  • We can implement the factory class as:

    • An abstract class (interface) that does not provide implementations for the methods it declares

    • A concrete class that provides a default implementation of the factory method, but can be overridden by derived classes

  • In a simple case, the factory interface can be replaced with a type

using MusicServiceCreator = std::function<std::unique_ptr<MusicService>()>;

Parameterized Factories#

Parameterized factories are used when the type of object to be created depends on the identifier passed to the factory method. As a result, a single factory instance can create objects of different types. Identifiers can be of different types, such as std::string, enum, or any other type that can be used to determine the type of object to be created. The information what type of object to create arrives very often at runtime (when parsing configuration files, user input, etc.).

Such a factory can be implemented as follows:

using MusicServiceCreator = std::function<std::unique_ptr<MusicService>()>;

class MusicServiceFactory
{
    std::unordered_map<std::string, MusicServiceCreator> creators_;
public:
    std::unique_ptr<MusicService> create(const std::string& id) const
    {
        auto& creator = creators_.at(id);
        return creator();
    }

    bool register_creator(const std::string& id, const MusicServiceCreator& creator)
    {
        return creators_.emplace(id, creator).second;
    }
};

The creators are registered with the factory using the register_creator method. As a creator, we can use a lambda function that creates an instance of the desired class.

MusicServiceFactory music_service_factory;

music_service_factory.register_creator("Tidal",
    [] { return std::make_unique<TidalService>("tidal_user", "KJH8324d&df"); });

//...

std::string id_from_config = "Tidal";
MusicApp app(music_service_factory.create(id_from_config));
